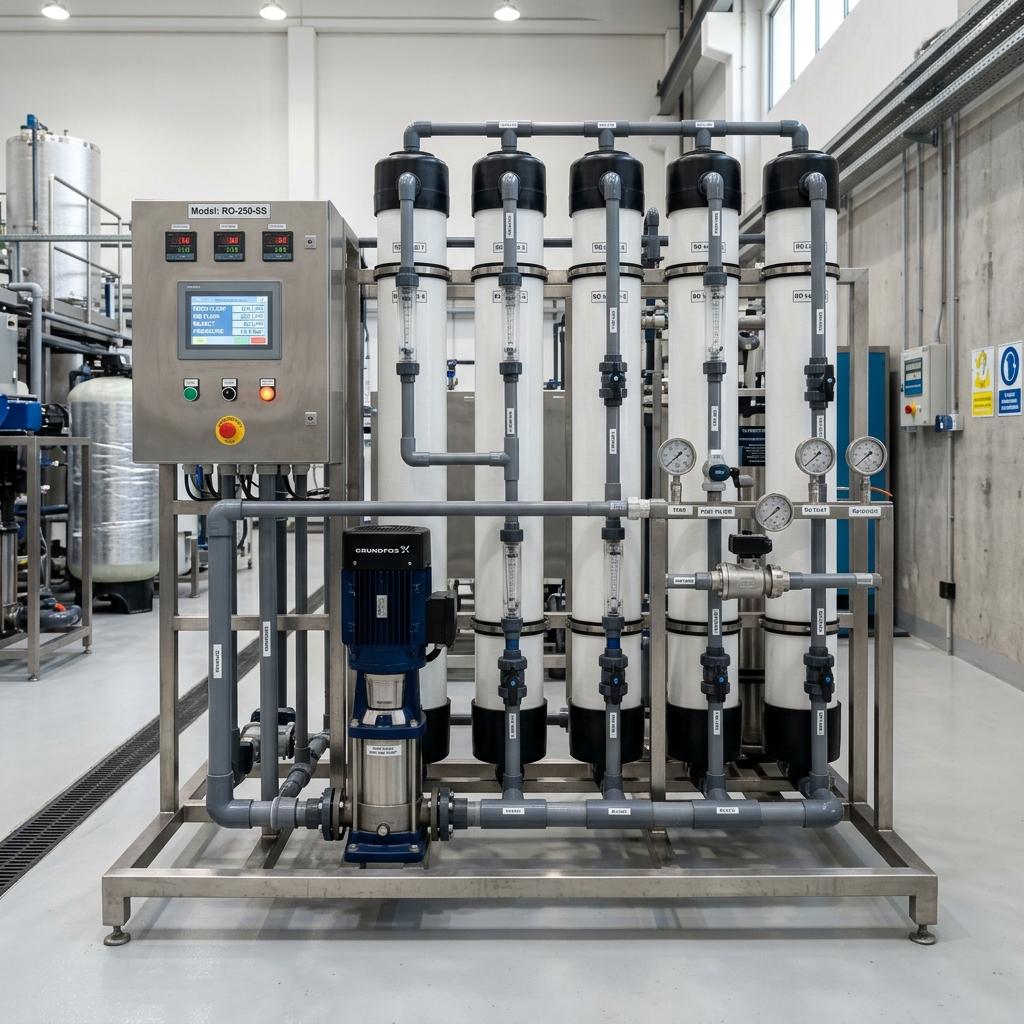

What is an Industrial RO Plant?
An Industrial Reverse Osmosis (RO) plant is a multi-stage water treatment system designed to process large volumes of hard water. Using high pressure pumps, water is pushed through semi-permeable membranes to filter out dissolved chemicals, heavy metals, biological germs, and minerals.
At Vinayaga Engineering, we customize these systems with tailored sand filters, carbon reactors, and antiscalant dosing units to handle high raw water TDS, ensuring your equipment stays scale-free and your staff gets healthy drinking water.
Reliable Engineering
Designed with stainless steel skids and commercial pumps to withstand continuous daily operations in factories, hospitals, and hotels.
Easy to Install
Pre-assembled skid mounting. Needs only inlet water, electricity, and drain piping.
Control Options
Choose between Manual, Semi-Automatic, or Fully Automatic microcontroller configurations based on your operational budget.
Cost-Efficient
Low power high-pressure pumps and long-life membranes reduce cost-per-liter.
Industrial RO Plant Overview Solutions
We build, assemble, and commission reverse osmosis plants in multiple capacities (50 to 2,000+ LPH) tailored to your site's raw water TDS and commercial volume requirements.
50 LPH
Best for offices, small clinics, and large households.
100 LPH
Suited for small restaurants, schools, and corporate floors.
150 LPH
Ideal for hotels, small hospitals, and commercial units.
200 LPH
Optimized for manufacturing floors and corporate complexes.
250 LPH
Our best-selling unit for medium commercial requirements.

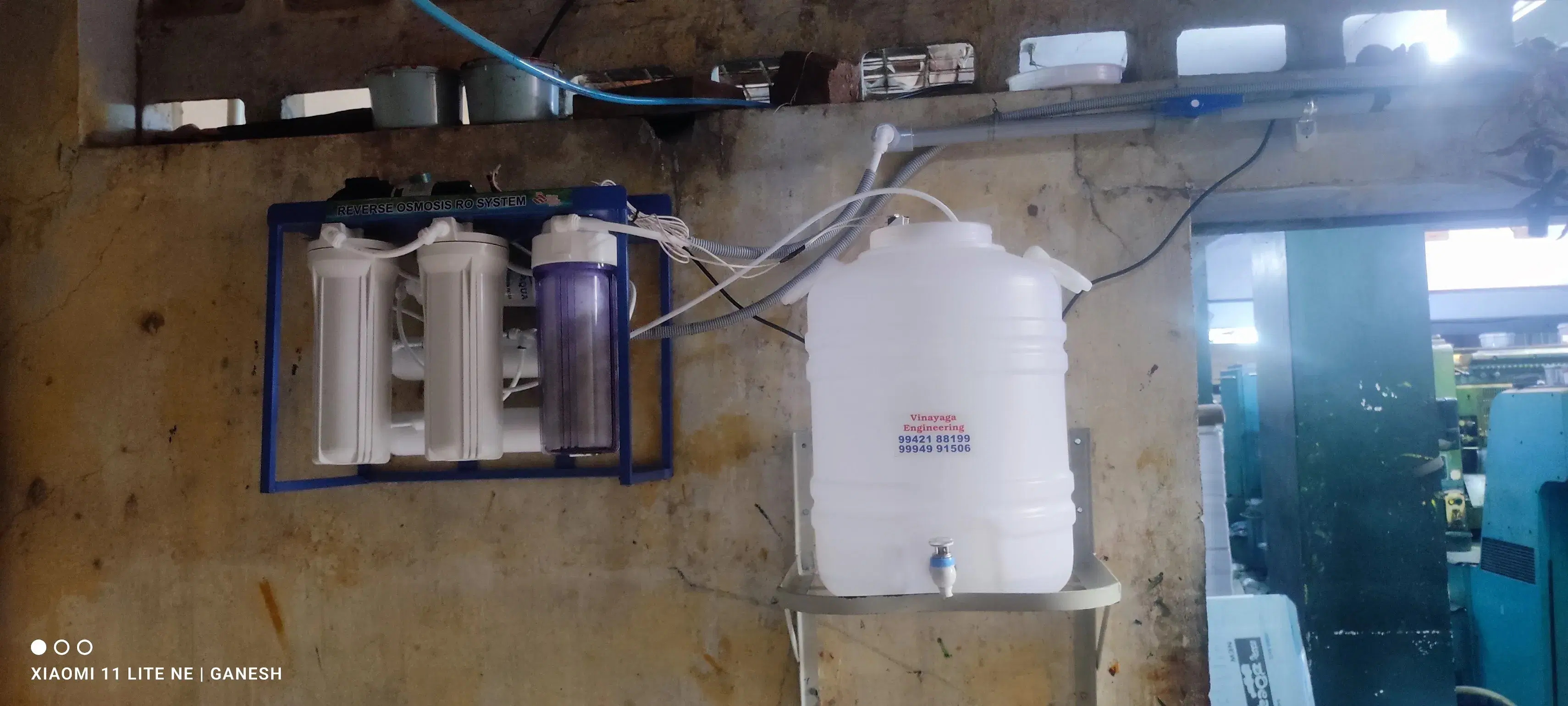

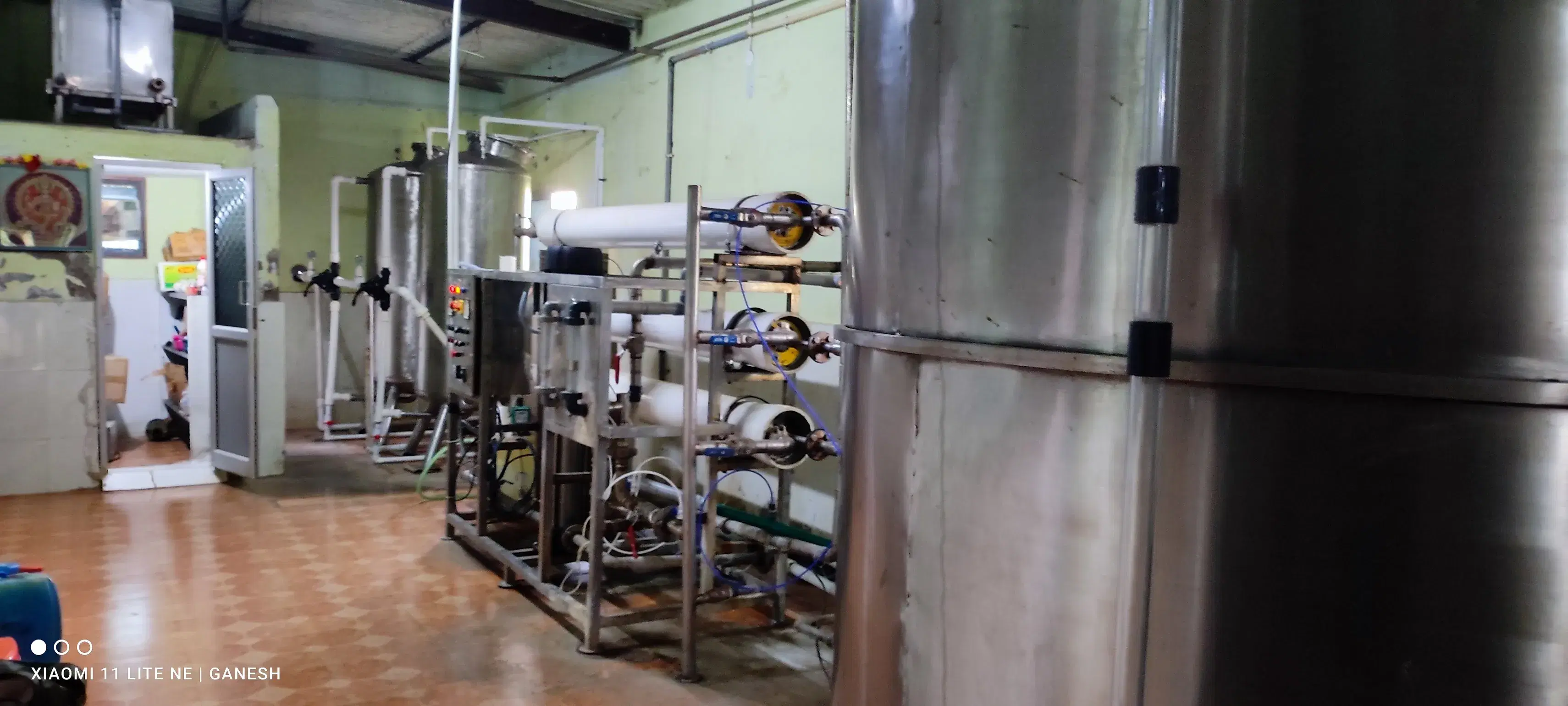

500 LPH
Designed for textile units, large hotels, and food processing.

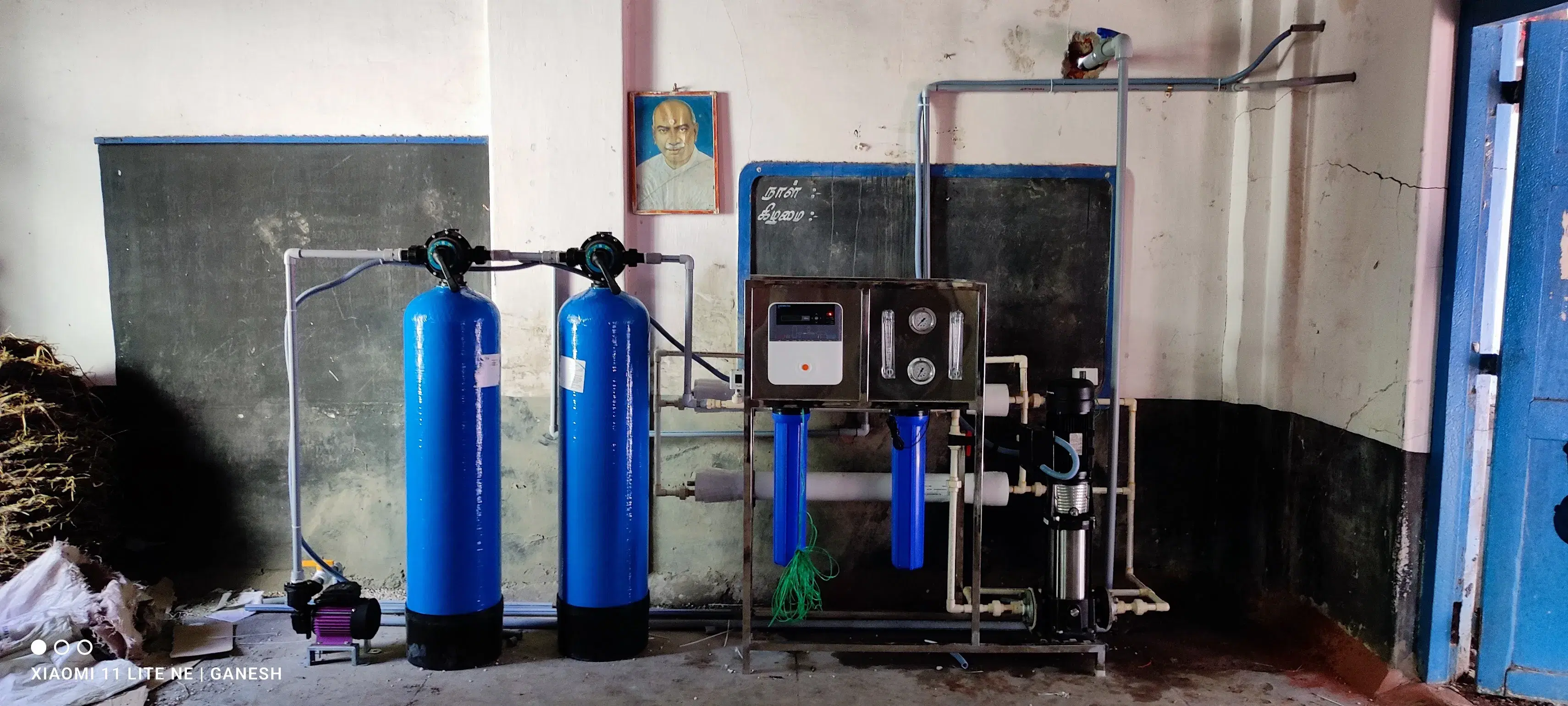

1000 LPH
Heavy industrial capacity for chemical plants and manufacturing.
2000 LPH
High-yield purification setups with custom pre-treatment.
Custom Orders
Any custom capacity with no limit. Engineered specifically to solve your exact raw water TDS problems.
Advanced Industrial Features
Engineered to deliver high performance water purification under challenging conditions.
Clean & Pure Water (TDS removal)
High rejection membrane removes up to 98% of dissolved heavy metals, hardness, and salts.
Power Efficient Motors
Equipped with energy-star rated high-pressure booster pumps (CRI / ALGO / SPEED).
Handles High Capacity
Designed to run continuously for up to 8-12 hours per day with robust cooling systems.
Advanced Pre-treatment
Dual media sand and active carbon pre-filters eliminate sand particles, organic odor, and chlorine.
High Pressure Vessels
Heavy-duty fiberglass reinforced plastic (FRP) vessels rated for high pressures.
Automatic Handling & Safety
Dry-run protection triggers auto shut-off if input water stops, protecting booster pumps.
Multi-Stage Industrial RO Filtration Architecture
Every Vinayaga Engineering plant integrates industrial pretreatment, hydraulic pressurization, and electronic flow management.

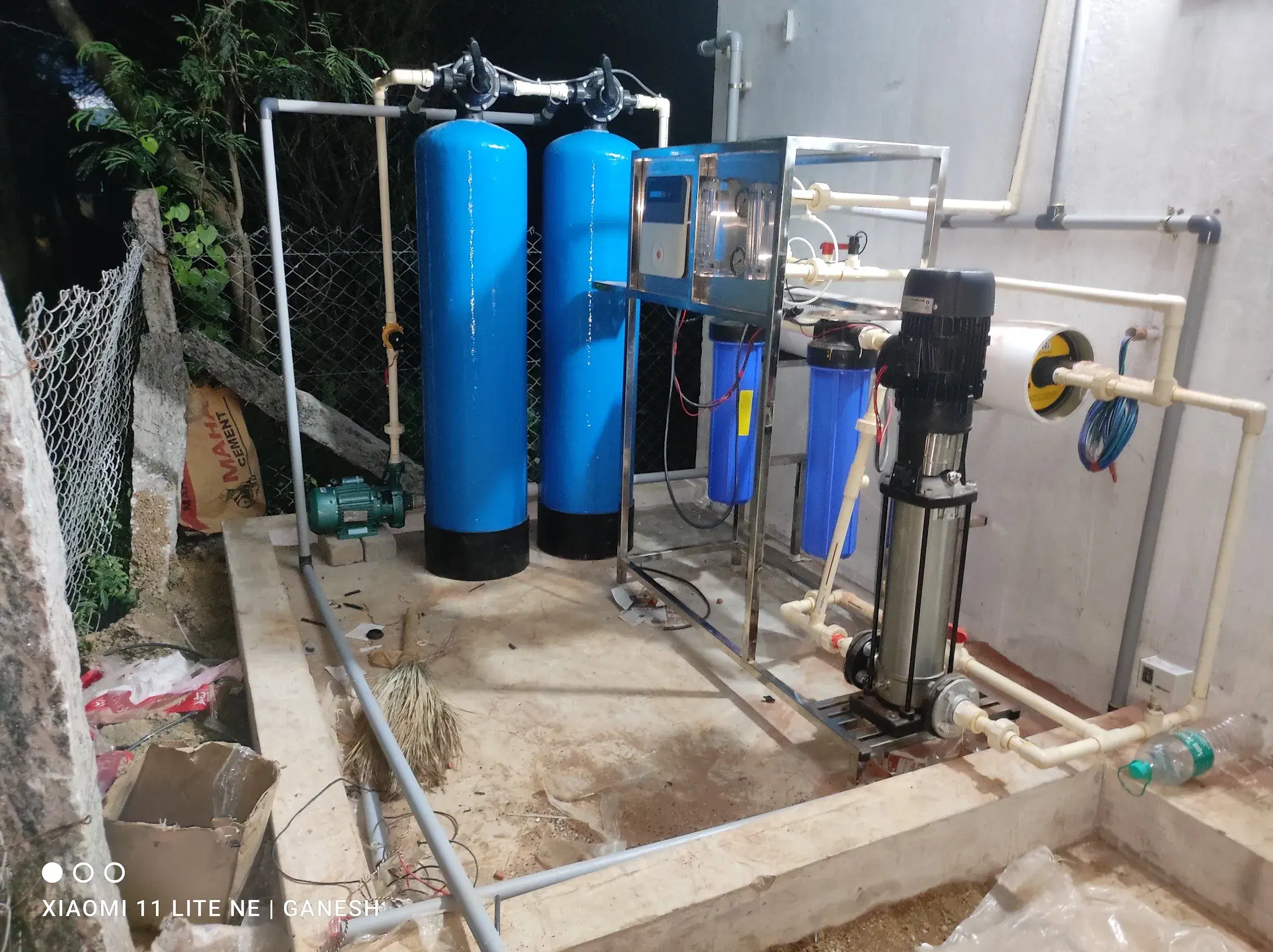

1. Dual-Media Sand Pre-Filtration
Multi-grade quartz sand, pebbles, and anthracite media trap suspended solids, silt, mud, and particulate matter down to 20 microns, preventing turbidity fouling in booster pumps and downline valves.
2. Activated Carbon Adsorption
High-iodine bituminous coal activated carbon strips free chlorine, volatile organic compounds (VOCs), organic odors, and pesticides. Protecting polyamide thin-film composite membranes from oxidative chemical degradation.

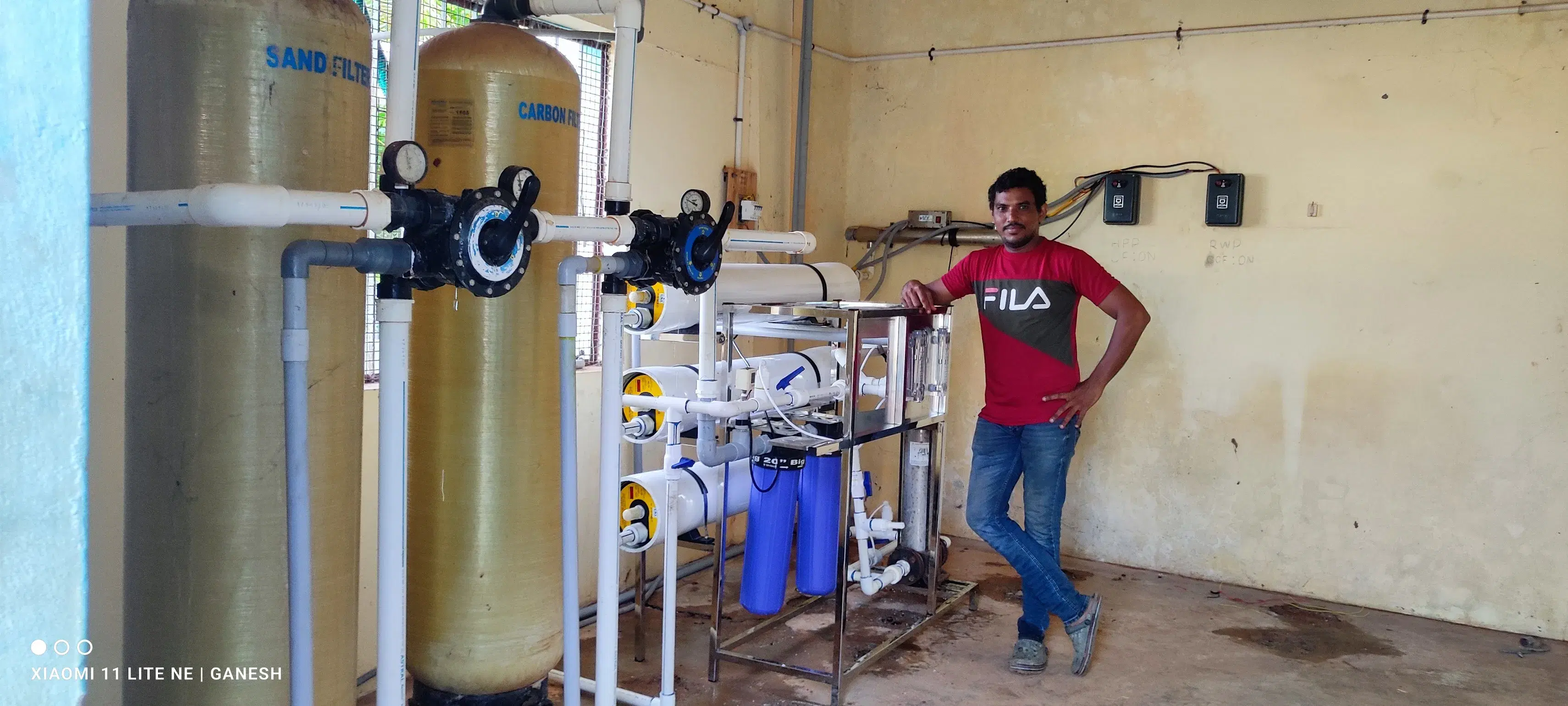

3. Anti-Scalant Metering & Micron Guards
Electronic chemical dosing pumps meter precise PPM dosages of food-grade antiscalant compound, followed by 5-micron spun polypropylene cartridge filters to arrest fine fines and protect membrane feed channels.

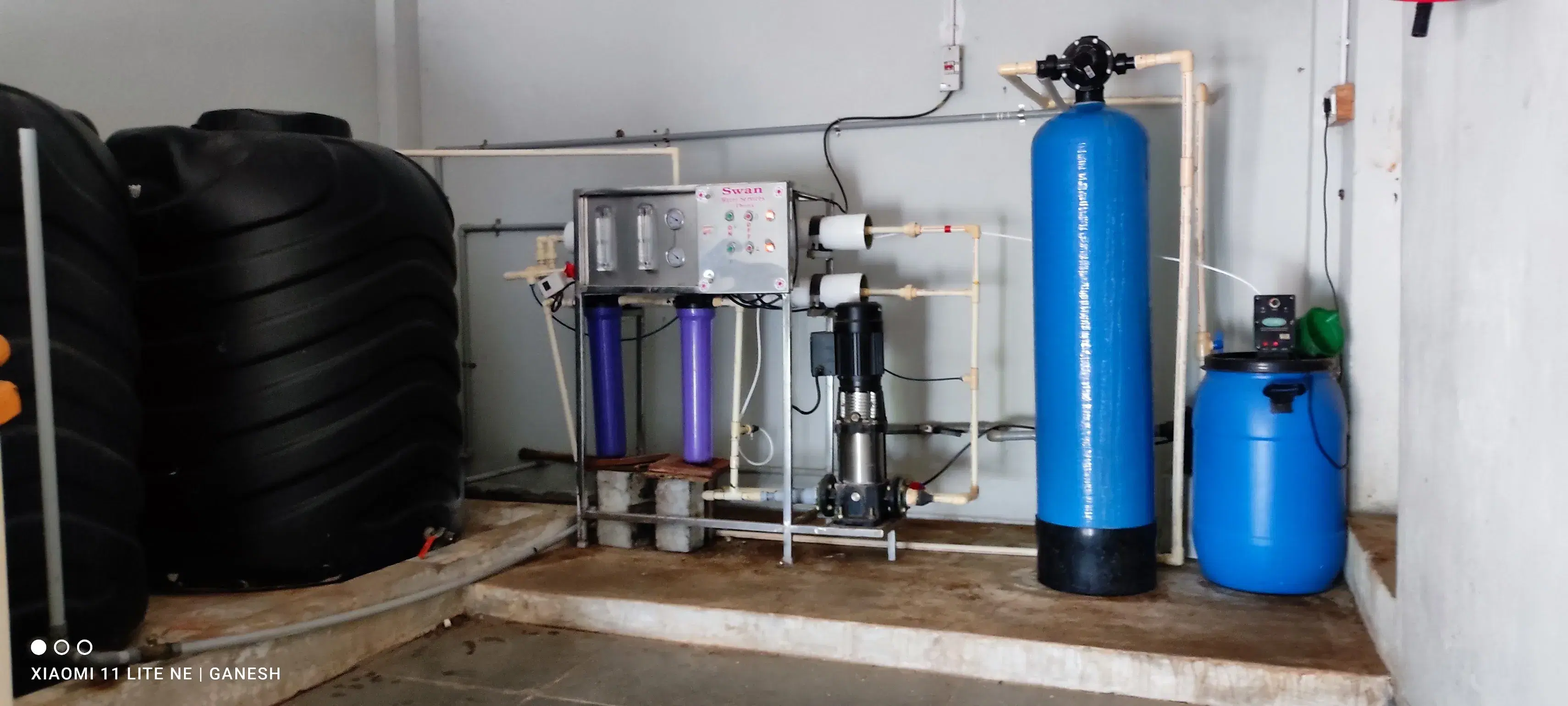

4. Vertical Multistage High-Pressure Pumps
SS 304 / SS 316 vertical multistage centrifugal pumps (C.R.I. / Algo / Speed) deliver continuous high-pressure feed (150 to 220 PSI), forcing water through nanometer-scale semi-permeable membrane pores.
5. High-Rejection Polyamide RO Elements
Equipped with genuine Dow Filmtec or Toray 4040 and 8040 spiral-wound composite membranes, achieving 98.5% to 99.5% rejection of dissolved salts, silica, heavy metals, fluoride, and microbial pathogens.
6. Real-Time Instrumentation & CIP Ports
Integrated rotameter flow transmitters for permeate and reject streams, dual digital conductivity/TDS meters, pressure relief safety valves, and quick-connect Clean-In-Place (CIP) chemical flushing manifolds.
Standard Commercial RO Plant Specifications
Compare power requirements, membrane configurations, and physical footprints across our standard capacity models.
| Capacity (LPH) | High Pressure Pump | Membrane Type & Qty | Power Supply | Floor Footprint | Primary Applications |
|---|---|---|---|---|---|
| 250 LPH | 1.0 HP Multistage | 4040 High Rejection × 1 | 220V Single Phase | 4 ft × 2.5 ft | Small restaurants, schools, clinics, hostels |
| 500 LPH | 1.5 HP Multistage | 4040 High Rejection × 2 | 415V Three Phase | 5 ft × 3 ft | Hotels, bakeries, colleges, small factories |
| 1,000 LPH | 3.0 HP Multistage | 4040 High Rejection × 4 | 415V Three Phase | 7 ft × 3.5 ft | Textile units, hospitals, food packaging |
| 2,000 LPH | 5.0 HP Multistage | 8040 Industrial × 2 | 415V Three Phase | 9 ft × 4 ft | Chemical plants, cooling towers, apartment blocks |

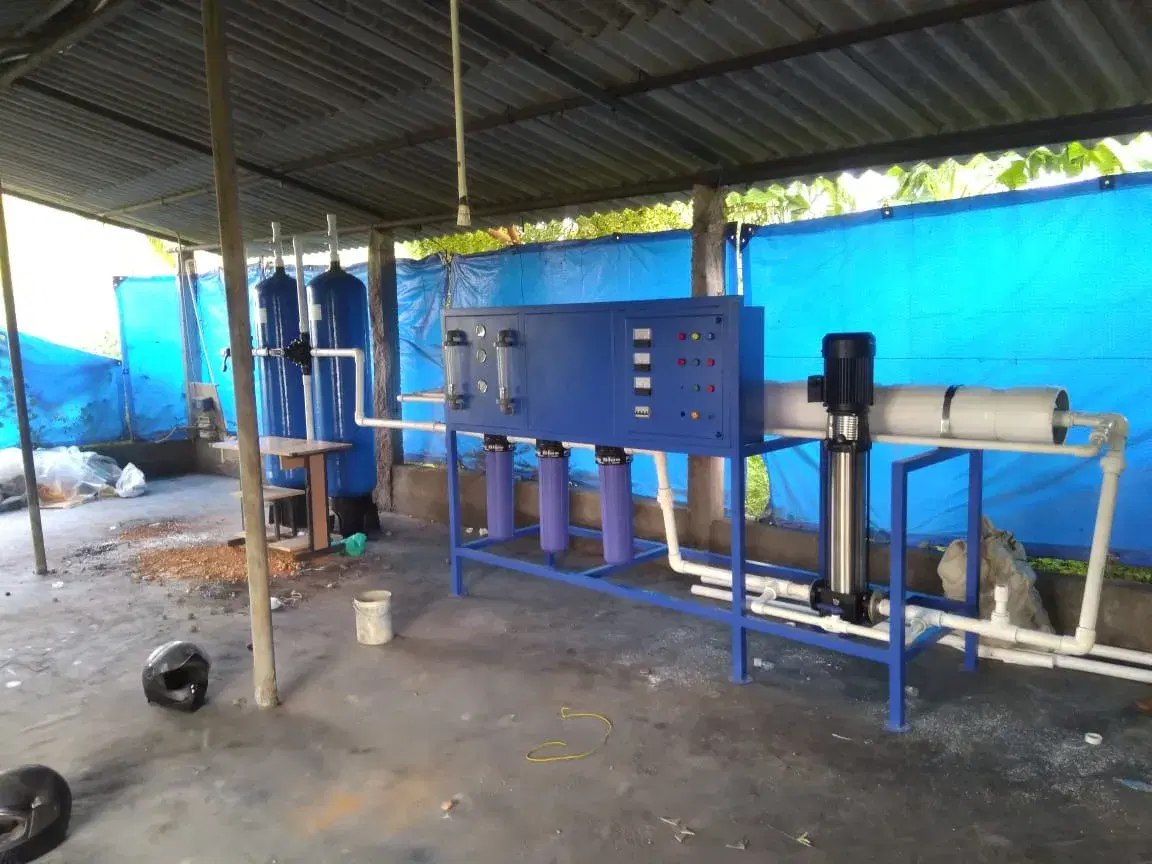

| 5,000+ LPH | 7.5 to 15 HP Multistage | 8040 Industrial × 4+ | 415V Three Phase | Custom Skid Layout | Large industrial manufacturing & bottling units |
Commercial & Industrial Applications Served
Custom-engineered reverse osmosis water purification tailored to strict industry quality standards across Tamil Nadu.
🏥 Healthcare & Clinical Dialysis
Double-pass reverse osmosis plants integrated with 0.2-micron microbial filtration and continuous UV sterilization. Delivering pyrogen-free purified feed for hemodialysis units, medical autoclave sterilizers, and central pathology laboratory testing.
🏨 Hospitality, Hotels & Commercial Kitchens
Pure drinking water and scaling-free kitchen water for high-volume hotels, restaurants, and food courts. Eliminates calcium deposits inside commercial dishwashers, steam combi ovens, espresso machines, and industrial ice-cube makers.
🏭 Textile Dyeing, Printing & Chemical Plants
Low-TDS boiler feed and process water for textile processing mills, paper manufacturers, and printing presses in Sivakasi, Virudhunagar, and Madurai. Prevents scale blowdown losses and tube corrosion while improving dye uptake.
🎓 Educational Institutions & Hostels
Centralized 500 LPH to 2,000 LPH drinking water skids feeding student hostels, cafeterias, and water coolers across schools, colleges, and engineering campuses. Equipped with automatic storage level controllers and hygienic stainless steel dispensing loops.
Trusted by Industrial Managers
“We installed the 500 LPH plant for our manufacturing unit. The water quality is extremely consistent, and our boiler scaling issues are completely resolved. Exceptional service!”
“Vinayaga Engineering recommended the right filtration system based on our borewell TDS. The installation was very neat, and their AMC maintenance is very systematic.”
“We needed pure sterile water for medical autoclaves. The custom 250 LPH setup provided by Vinayaga Engineering passed all purity tests. Punctual technicians!”
Industrial Plant FAQs
Common queries related to commercial water treatment installations.
What is the price range for industrial RO plants?
Pricing varies based on plant capacity (LPH), feed water TDS levels, and custom pre-treatment filter requirements. Please fill out our contact form or get in touch directly to get an exact customized price quote for your site.
What are the standard pre-treatment components in your plants?
Every plant comes with a Raw Water Pump, Dual-Media Sand Filter, Activated Carbon Filter, and Micron Cartridge Filters to protect the RO membrane.
How long does installation take?
Standard pre-assembled plants like the 250 LPH can be completely installed, plumbed, and tested within 2 to 3 hours once site preparations are ready.
What site preparations are required?
You need to provide a flat solid flooring space, a raw water supply tank, a 3-phase or single-phase electrical supply (based on size), and a drain line for reject water.
How much wastewater is produced during purification?
Industrial RO plants generally yield a recovery rate of 40% to 50% pure water, with the remaining water discharged as reject. This reject water can be reused for gardening, flushing, or floor washing.
How often should filters be replaced?
Pre-filters should be backwashed daily. Micron cartridges need replacement every 2-3 months. Sand and Carbon media are replaced every 1 to 2 years, while the RO membrane lasts 1.5 to 3 years.
Why is automated chemical antiscalant dosing critical in commercial RO plants?
Antiscalant chemical dosing delays the precipitation of calcium carbonate, calcium sulfate, and silica scaling on thin-film composite membrane surfaces. In South Tamil Nadu borewell environments where TDS frequently exceeds 1,500 ppm, continuous antiscalant metering preserves membrane flux, extends operational lifespan, and reduces electrical pumping energy.
How often should Clean-In-Place (CIP) membrane cleaning be performed?
Clean-In-Place (CIP) chemical flushing is recommended every 3 to 6 months, or immediately when normalized permeate flow decreases by 10% to 15%, or differential pressure increases by 15%. Our Comprehensive AMC packages include specialized high/low pH CIP cleaning routines to dissolve mineral scale and organic fouling.
Do you offer warranty and AMC?
Yes, we offer a 1-year warranty on all electrical and electronic components. For a limited time, every new commercial & industrial RO plant includes a FREE 1-Year Comprehensive Warranty & 1-Year Annual Maintenance Contract (AMC) covering filter maintenance, chemical backwashing, and membrane pressure calibration.
